Horizontal Scroll: Basic Techniques For Designing Testable ICs:
Internal Scan and BIST
 Austin, TX

Presented by “Ben” Bennetts, Bennetts Associates and Jim Johnson, SiliconAid Solutions, Inc.

DURATION: 2 days

TARGET AUDIENCE digital chip designers and test engineers, test-synthesis tool developers and product support engineers.

MOTIVATION OBJECTIVES: to motivate chip designers to consider life-cycle test needs as an integral part of a product design process to the point where they proactively seek help to design in testability.

TEACHING OBJECTIVES: determine the fundamental limits of test technology and hence identify the "why" of DFT; teach the "how" of DFT solutions - internal scan and Built-In Self Test and demonstrate the tools in action


Rounded Rectangle: Day 1
Design For Test: Basics, Scan Design (Theory and Practice)






Day 1 is a general introduction to the notional concepts of Design-For-Test and its relationship with device life-cycle test and overall quality requirements.   The day starts with a refresher on the basics of DFT covering the classic fault models (stuck-ats, bridging and propagation delay) and their relevance to modern-day silicon defects.   This is followed by a brief introduction to IDDQ current test.   But the bulk of the day is devoted to the DFT technique of internal scan: where it came from, what it is, and an in-depth look at the practical issues based on using commercial tools.  The day concludes with a review of practical DFT guidelines to support scan design.

DFT BASICS: REFRESHER

DFT, quality and test

IC defects and fault models

IDDQ Testing

INTERNAL SCAN DESIGN TECHNIQUES: BASICS

ATPG: Sensitive path concepts (combinational and sequential application)

Assessing fault coverage: fault simulation

Reasons for and principles of scan design

Edge-Sensitive Scan Design: MDFF

PLD design example

INTERNAL SCAN DESIGN: SCAN SYNTHESIS

Rule checking: identifying candidate flip-flops for scan chain insertion

Scan-chain balancing,

Single or multiple clock in scan mode?

Module-to-module scan chain linking

Multi-cycle paths and false paths

Flip-flop ordering/reordering in scan chains

Handling embedded memory: wrapper, bypass and write through

Scan chain insertion

DEMONSTRATION – Simple design performing scan insertion and quick ATPG

Adding disabling logic to avoid contention during scan-in/out operation

Designer responsibilities

The major pros and cons of scan based design

PRACTICAL SCAN-DESIGN GUIDELINES

The does and don’t of making a “Scan Friendly” Design

How to work around some common real world circuits (clock gating, tri-state busses, and more)

DFT AUTOMATED DESIGN RULES CHECKING (DRCs)

Common types of DRCs third party tools check

DEMONSTRATION - Execute the same basic design as shown earlier; however, this version has a few common DRC violations.


Rounded Rectangle: Day 2
Advanced Scan, Built-In Self Test and DFT Testers

Day 2 continues on some of the more recent developments in internal scan and then concentrates on Built-In Self Test, looking at the two main industrially-accepted Built-In Self Test techniques of memory BIST (for multiple instances of embedded memory) and logic BIST (as a natural extension of full scan circuits).  The day concludes with a discussion of the recent test-data compression techniques, and how they stack up against logic BIST, and the emergence of the PC-based low-cost DFT testers

PATH DELAY AND TRANSITION DELAY FAULTS

What causes delay faults?

How are they modelled?

Pattern generation techniques

Methods for selecting Paths to target with Path delay vectors

Pattern application techniques (through scan chain

BUILT-IN SELF TEST (BIST)

Elements of a BIST circuit

Motivation for and potential benefits of BIST

RAMs: failure mechanisms and test algorithms (6N, 9N, March C-, ….)

Memory BIST (SRAM, DRAM, ROM)

Architecture for multiple instances of memory

DEMONSTRATION – Simple memory BIST with multiple arrays on one controller

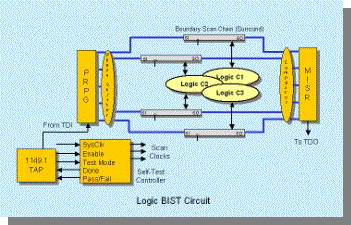

Logic BIST: BIST for scan design ICs

Use of pseudo-random pattern generation and data compaction techniques: pseudo-random properties, aliasing

Building blocks: Linear Feedback Shift Register (LFSR) and Multiple-Input Signature Register ( MISR)

Logic BIST architecture

DEMONSTRATION – Full scan design performing Logic BIST

At-speed testing thru logic BIST

Overcoming pseudo-random resistance: test-point insertion, re-seeding

Scan-thru-TAP mode

TEST DATA COMPRESSION (EMBEDDED DETERMINISTIC TEST) TECHNIQUES

What is test data compression?

Compression/decompression techniques

Logic BIST versus test data compression

DFT TESTERS

The emergence of the low-cost PC-based chip tester for DFT-enabled devices

DFT CONCLUSIONS

DFT economics

Leveraging DFT techniques "above the chip" and "above the board": product life-cycle view
